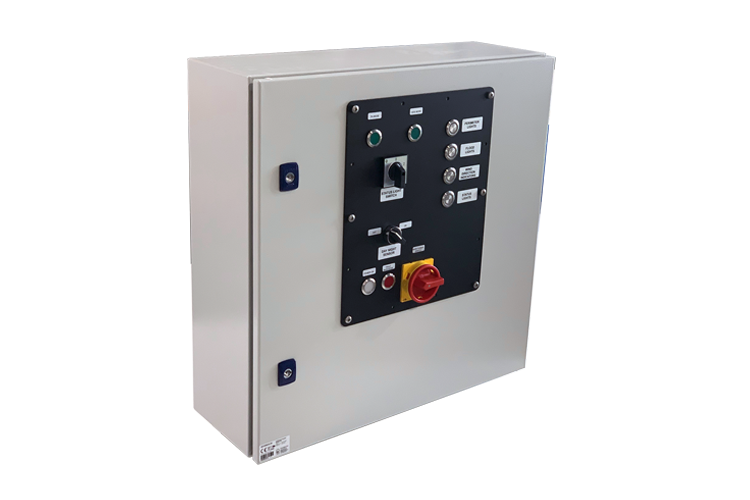

Details Q-Control System X2
The Q-Control X2 is the standard solution for switching on and off your lighting groups on any helideck including the TD/PM System. The basic functions are implemented by using only high quality branded components. The Q-Control can operate 6 groups of 16A each.
The Q-Control X2 has six switches that can be manually switched on and off the Helideck lights including the TD/PM System. The Q-Control also has a factory standard built-in interface that allows for remote control. Using remote control offers the Q-Control to switch on several groups by a radio controller or any desired interface. In addition to switching on and off groups remotely, the power active and fault light indicators are also interfaced to display remotely.
Additional Information
Product Specifications Q-Control System X2
Size and Dimension
| Article Number: | Q31WMX2 |
| Manufacturer: | Q-Aviation B.V. |
| HS-Code: | 94054039 |
| Warranty: | 2 Years |
| Application: | Helideck |
| Hazardous area: | Safe Area |
| Enclosure: | Steel, Powder coated RAL7035 |
| Mounting: | Wall mount |
| Input Voltage: | 100-240 VAC 50-60Hz from circuit breaker C20A |
| External earthing: | 12x M25x1.5 |
| Tested Ambient Temp: | -20°C to + 50°C |
| Cable bottom entry: | 12x M25x1.5 |
| Cable size: | 12 - 19mm |
| Consumption: | 5 Watt |
| Life expectancy: | 100.000+ hours |
| Cable: | H07RN-F 3x2,5mm² |
| Ingress Protection: | IP54 |
| In Compliance With: | ICAO annex 14, CAP437 |
| Fault detection: | Yes, Potential free relay |
| Weight: | 26,4 kg |
| Dimension: | 681x600x270mm (LxWxH) |
| Dimension Packaging: | 700x700x300mm (LxWxH) |
