Details Q31WMX series
The Q-Control has 6 groups that can be manually switched on and off. In addition to switching on and off groups, the Power Active and Fault light indicators are displayed.
The Q-Control has six switches that can be manually switched on and off. In addition to these switches, the Q-Control has a factory standard built-in interface that allows remote control.
Using remote control offers the Q-Control to switch on several groups by a radio controller or any desired interface.
In addition to switching on and off groups remotely, the Power Active and Fault light indicators are also interfaced to display remotely.
Controller for all Helideck lights:

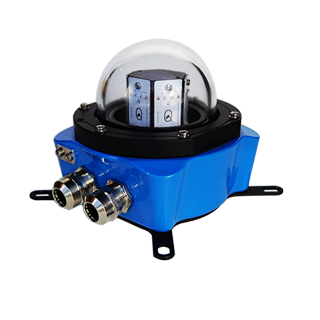

FATO Lights
TLOF Lights
Taxi Lights
Floodlights
Windsock
Obstruction lights

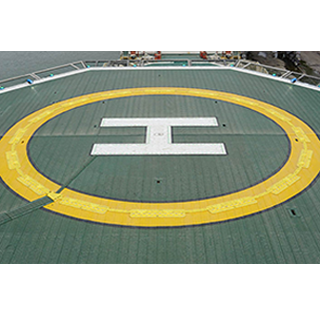

*TD/PM system

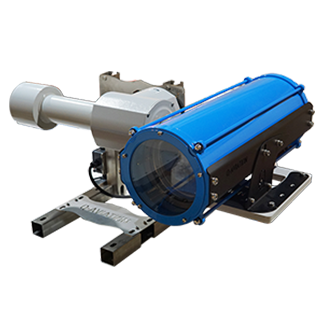

*HAPI System
* Statuslight System
* Order codes in next table
Order code Q31WMX
Q31WMX1-R1 CAP437, 100-240 Vac, Safe Area controller (6 groups)
Q31WMX2-R1 The above including Build-In TD/PM System controller
Q31WMX3-R1 The above including Build-In Status Light & TD/PM System
Q31WMX4-R1 The above including Build-In HAPI System Controller
Additional Information
Product Specifications Q31WMX series
Size and Dimension
| Article Number: | Q31WMX1 |
| Manufacturer: | Q-Aviation B.V. |
| HS-Code: | 94054039 |
| Warranty: | 2 Years |
| Application: | Helideck |
| Hazardous area: | Safe Area |
| Enclosure: | Steel, Powder coated RAL7035 |
| Mounting: | Wall mount |
| Input Voltage: | 100-240 VAC 50-60Hz from circuit breaker C20A |
| Tested Ambient Temp: | -20°C to + 50°C |
| Cable bottom entry: | 12x M25x1.5 |
| Cable size: | 12 - 19mm |
| Consumption: | 5 Watt |
| Life expectancy: | 100.000+ hours |
| Cable: | H07RN-F 3x2,5mm² |
| Ingress Protection: | IP54 |
| In Compliance With: | ICAO annex 14, CAP437 |
| Fault detection: | Yes, Potential free relay |
| Cable glands included: | 12x M25x1.5 |
| Weight: | 35 Kg |
| Dimension: | 681x600x270mm (LxWxH) |
| Dimension Packaging: | 700x700x300mm (LxWxH) |
